Hãng sản xuất

Asrock

Chipset

Intel B760

CPU

Supports 14th, 13th & 12th Gen Intel® Core™ Processors (LGA1700)
- Supports Intel® Hybrid Technology
- Supports Intel® Turbo Boost Max 3.0 Technology
- Supports Intel® Thermal Velocity Boost (TVB)
- Supports Intel® Adaptive Boost Technology (ABT)

Socket

LGA 1700

RAM

DDR5

Hỗ trợ tối đa RAM

256GB

Khe cắm PCI-E

1 PCIe 5.0 x16, 1 PCIe 3.0 x16

Card đồ họa

- Intel® Xe Graphics Architecture (Gen 12)
- 1 x HDMI 2.1 TMDS Compatible, supports HDCP 2.3 and max. resolution up to 4K 60Hz
- 1 x DisplayPort 1.4 with DSC (compressed), supports HDCP 2.3 and max. resolution up to 8K 60Hz / 5K 120Hz

Kết nối

2.5 Gigabit LAN 10/100/1000/2500 Mb/s

Khe cắm M.2

3

Âm thanh

- 7.1 CH HD Audio (Realtek ALC897 Audio Codec)
- Nahimic Audio

Cổng I/O bên trong

- 1 x SPI TPM Header
- 1 x Chassis Intrusion and Speaker Header
- 1 x RGB LED Header*
- 3 x Addressable LED Headers**
- 1 x CPU Fan Connector (4-pin)***
- 1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)****
- 4 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)*****
- 1 x 24 pin ATX Power Connector
- 1 x 8 pin 12V Power Connector (Hi-Density Power Connector)
- 1 x Front Panel Audio Connector
- 1 x Thunderbolt™ AIC Connector (5-pin) (Supports ASRock Thunderbolt™ 4 AIC Card)
- 2 x USB 2.0 Headers (Support 4 USB 2.0 ports)
- 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports)
- 1 x Front Panel Type C USB 3.2 Gen1 Header

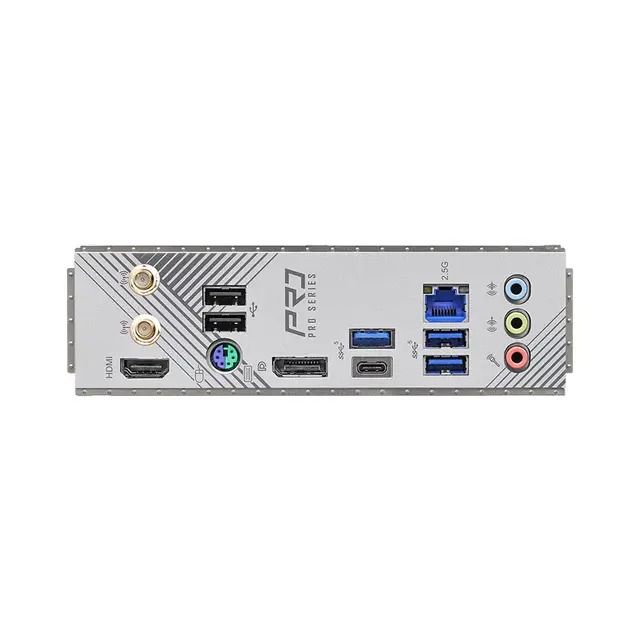

Cổng I/O phía sau

- 2 x Antenna Ports
- 1 x PS/2 Mouse/Keyboard Port
- 1 x HDMI Port
- 1 x DisplayPort 1.4
- 1 x USB 3.2 Gen1 Type-C Port
- 3 x USB 3.2 Gen1 Type-A Ports
- 2 x USB 2.0 Ports
- 1 x RJ-45 LAN Port
- HD Audio Jacks: Line in / Front Speaker / Microphone

Kích thước

Micro ATX Form Factor: 9.6-in x 9.6-in, 24.4 cm x 24.4 cm

Trọng lượng

-

Tương thích

- Microsoft® Windows® 10 64-bit / 11 64-bit

Tính năng khác

• Intel ®Killer™ Wi-Fi 6E

• Nahimic Audio

• 7 +1 +1 Power Phase Design
