Model

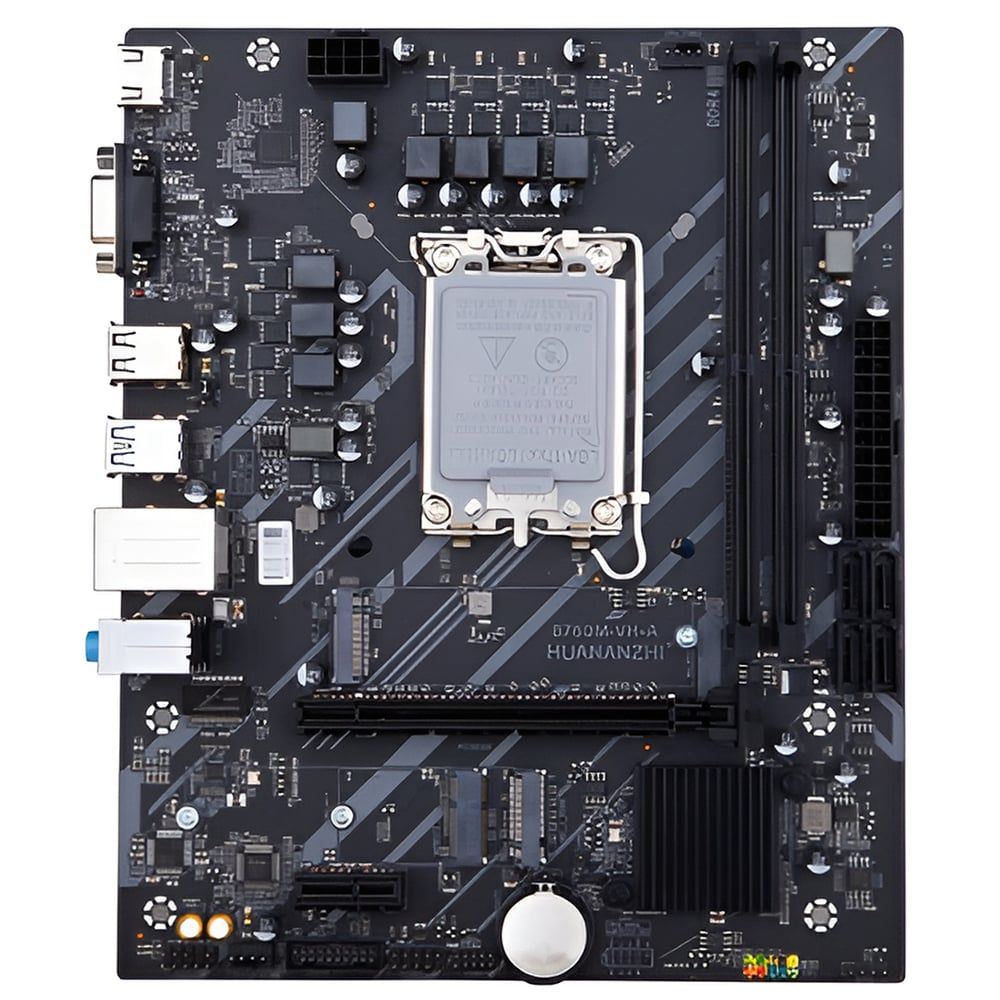

HUANANZHI B760M-VH-A/B Motherboard

Chipset

Intel B760

CPU Socket

Supports IntelLGA1700

Memory Slot

2 x DDR4 Memory Slot

Memory Standard

Support dual channels DDR4 3200/2933/2666/2400MHz，Max Support 64GB

Storage Interface

4xSATA3.0 6Gbps

Expansion Slots

1xPCI Express 4.0 x16，1xPCI Express 3.0 x1

Expansion Interface

2xM.2 2280 NVME PCIE X4 4.0 ，1xM.2 WIFI

d Track

Realtek High Definition Audio

Network Card

Realtek Gigabit Network Card

Power Interface

24PIN+8PIN

FAN PIN

1xCPU_FAN PIN，1xSYS_FAN PIN

Power Supply

8 Phase Power Supply

PCB Layers

4-layer PCB

Dimension

220*180MM M-ATX

Rear Panel Interface

2xUSB2.0 480Mbps，2xUSB3.2 10Gbps，2xUSB3.2 5Gbps，1xNetwork Card Interface，1x3-Hole Audio Interface，

1xVGA Interface，1xHDMI 2.0Interface

Front Panel Interface

1xUSB2.0 480Mbps PIN，1xUSB3.2 5GbpsPIN，1xFront Audio PIN，1xCOM PIN，1xPower On/Restart PIN，1xDebug PIN

Support System

Windows10 Windows11（Support incoming power on/timed power on/network card startup/network wake-up）

BIOS

AMI UEFI BIOS

Packing List

1xMotherboard，1xSATA Cable
