Thông số

    Chi tiết

Hãng sản xuất

Gigabyte

Chipset

Intel® B760 Express Chipset

Socket

LGA 1700 - Support for the 14th, 13th, and 12th Generation Intel® Core™, Pentium® Gold and Celeron® Processors
L3 cache varies with CPU

RAM

DDR4

Hỗ trợ tối đa RAM

128 GB (4 x DDR4 DIMM)

Khe cắm PCI-E

•  1 x PCI Express x16 slot

•  2 x PCI Express x1 slots

Kết nối

Realtek® GbE LAN chip (1 Gbps/100 Mbps/10 Mbps)

Khe cắm M.2

2

Âm thanh

Realtek® Audio CODEC
High Definition Audio
2/4/5.1/7.1-channel

Hệ điều hành

Windows 11 64-bit
Windows 10 64-bit

Kết nối I/O bên trong

1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
1 x CPU fan header
3 x system fan headers
1 x addressable LED strip header
1 x RGB LED strip header
2 x M.2 Socket 3 connectors
4 x SATA 6Gb/s connectors
1 x front panel header
1 x front panel audio header
1 x USB Type-C® header, with USB 3.2 Gen 1 support
1 x USB 3.2 Gen 1 header
2 x USB 2.0/1.1 headers
1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 / GC-TPM2.0 SPI V2 module only)
1 x serial port header
1 x parallel port header
1 x S/PDIF Out header
1 x Q-Flash Plus button
1 x reset jumper
1 x Clear CMOS jumper

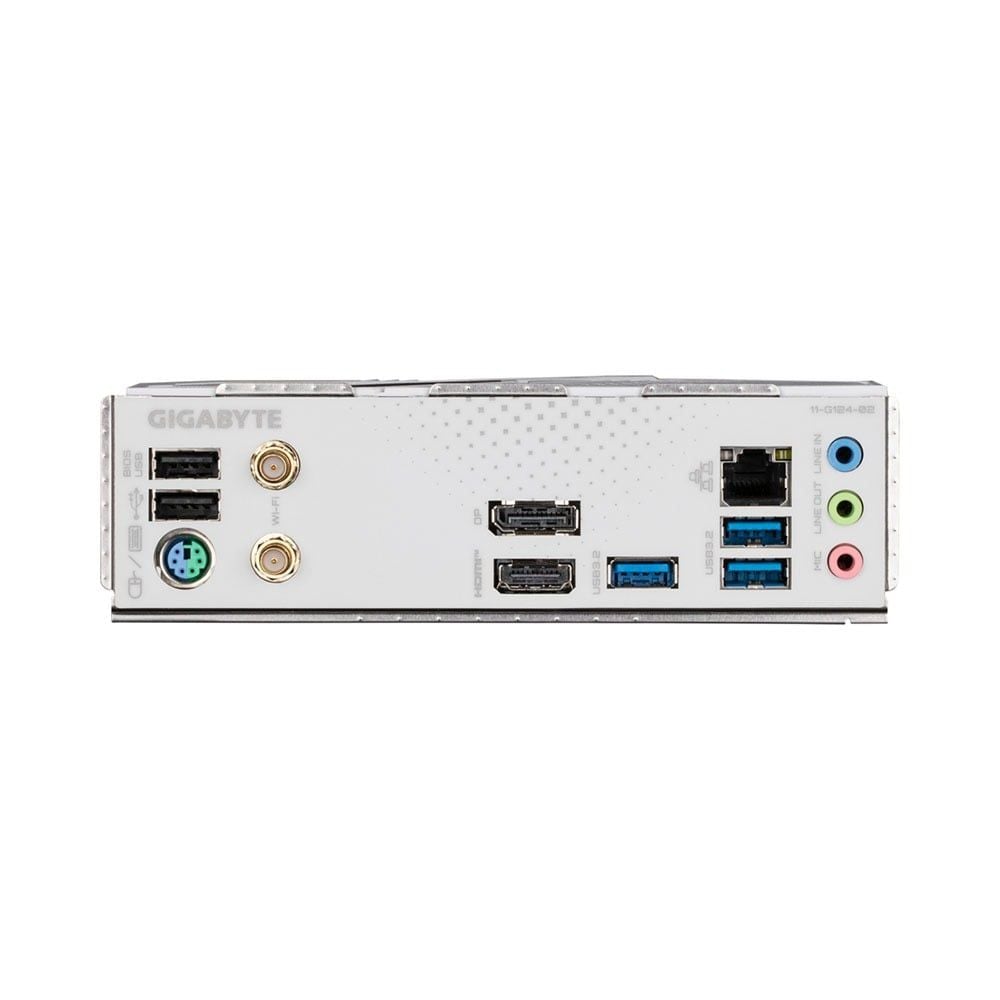

Kết nối bảng phía sau

2 x USB 2.0/1.1 ports
1 x PS/2 keyboard/mouse port
2 x SMA antenna connectors (2T2R)
1 x DisplayPort
1 x HDMI port
3 x USB 3.2 Gen 1 ports
1 x RJ-45 port
3 x audio jacks

Kích thước

Micro ATX Form Factor; 24.4cm x 24.4cm

Trọng lượng

-

Tính năng khác

• Support for GIGABYTE Control Center (GCC)

• Support for Q-Flash

• Support for Q-Flash Plus
