Tên Hãng | ASROCK |
Model | H510M-HDV |
Chipset | H510 |
RAM hỗ trợ | 2 x DIMM SLOTS, tối đa 64GB DDR4 Supports DDR4 3200 / 2933 / 2800 / 2666 / 2400 / 2133 non-ECC, un-buffered memory |
Khe cắm mở rộng | 11th Gen Intel® Core™ Processors - 1 x PCI Express 4.0 x16 Slot* 10th Gen Intel® Core™ Processors - 1 x PCI Express 3.0 x16 Slot* - 1 x PCI Express 3.0 x1 Slot |
Ổ cứng hỗ trợ | 4 x SATA3 6.0 Gb/s Connectors |
Cổng kết nối (Internal) | - 1 x SPI TPM Header - 1 x Chassis Intrusion and Speaker Header - 1 x CPU Fan Connector (4-pin)* - 1 x Chassis/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)** - 1 x 24 pin ATX Power Connector - 1 x 8 pin 12V Power Connector - 1 x Front Panel Audio Connector - 1 x USB 2.0 Header (Supports 2 USB 2.0 ports) (Supports ESD Protection) - 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports) (Supports ESD Protection) |

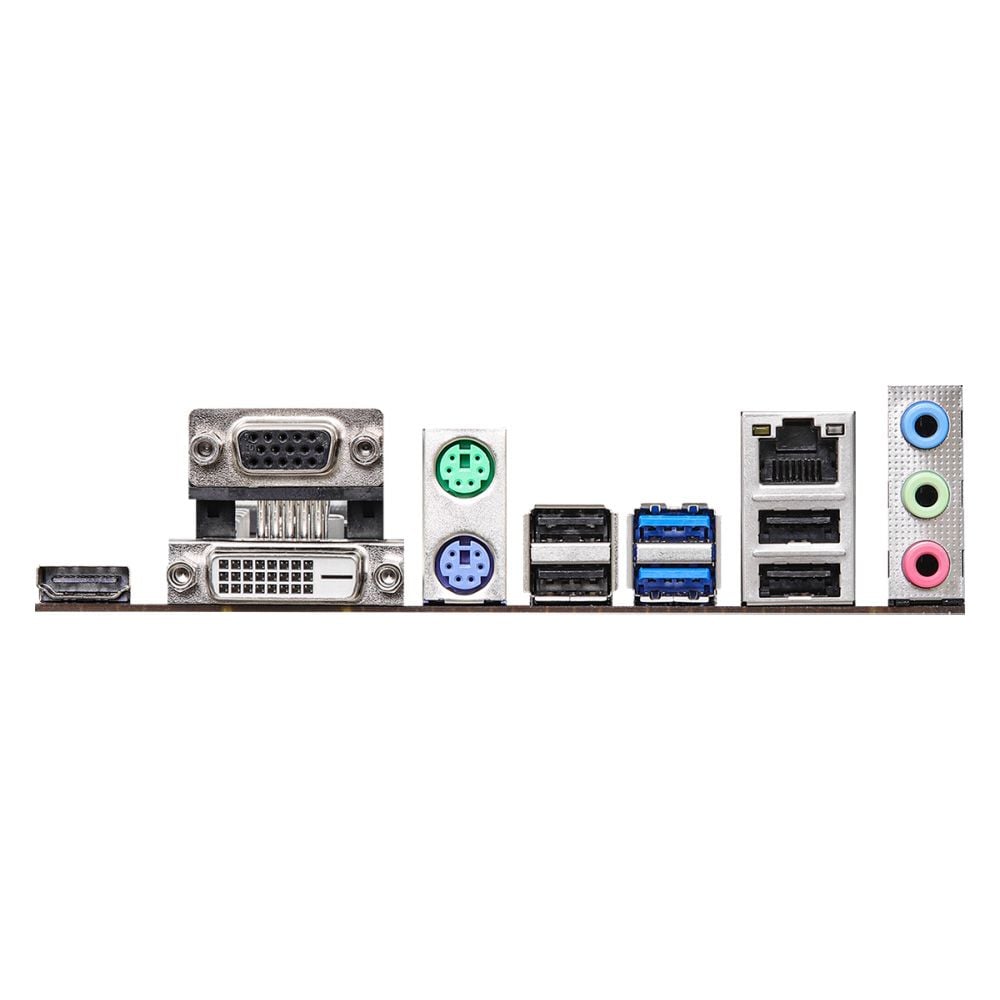

Cổng kết nối (Back Panel) | - 1 x PS/2 Keyboard Port - 1 x PS/2 Mouse Port - 1 x D-Sub Port - 1 x DVI-D Port - 1 x HDMI Port - 2 x USB 3.2 Gen1 Ports (Supports ESD Protection) - 4 x USB 2.0 Ports (Supports ESD Protection) - 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED) - HD Audio Jacks: Line in / Front Speaker / Microphone |
LAN / Wireless | PCIE x1 Gigabit LAN 10/100/1000 Mb/s |
Kích cỡ | Micro ATX Form Factor: 7.76-in x 7.4-in, 19.7 cm x 18.8 cm |
