Hãng sản xuất

Asus

Model

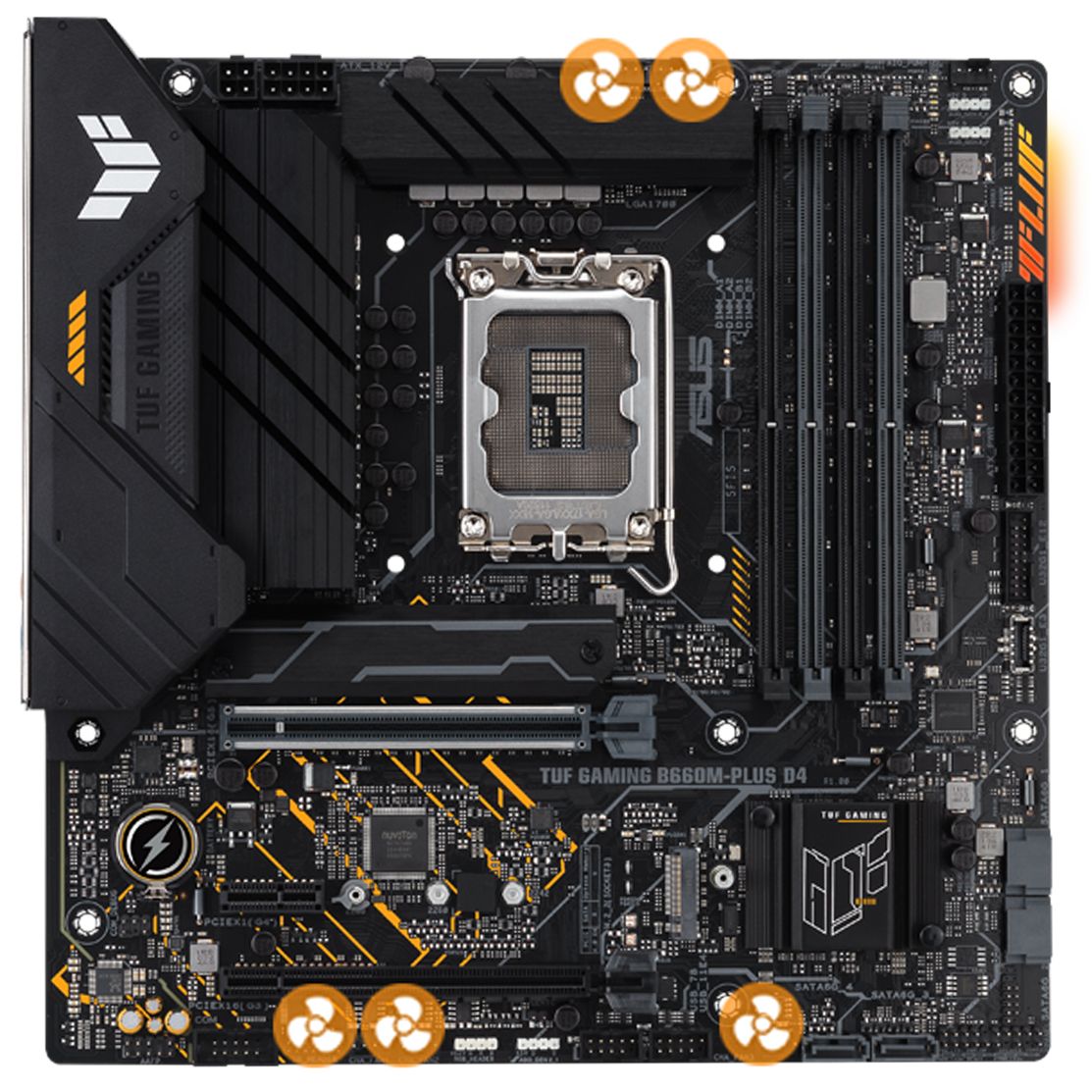

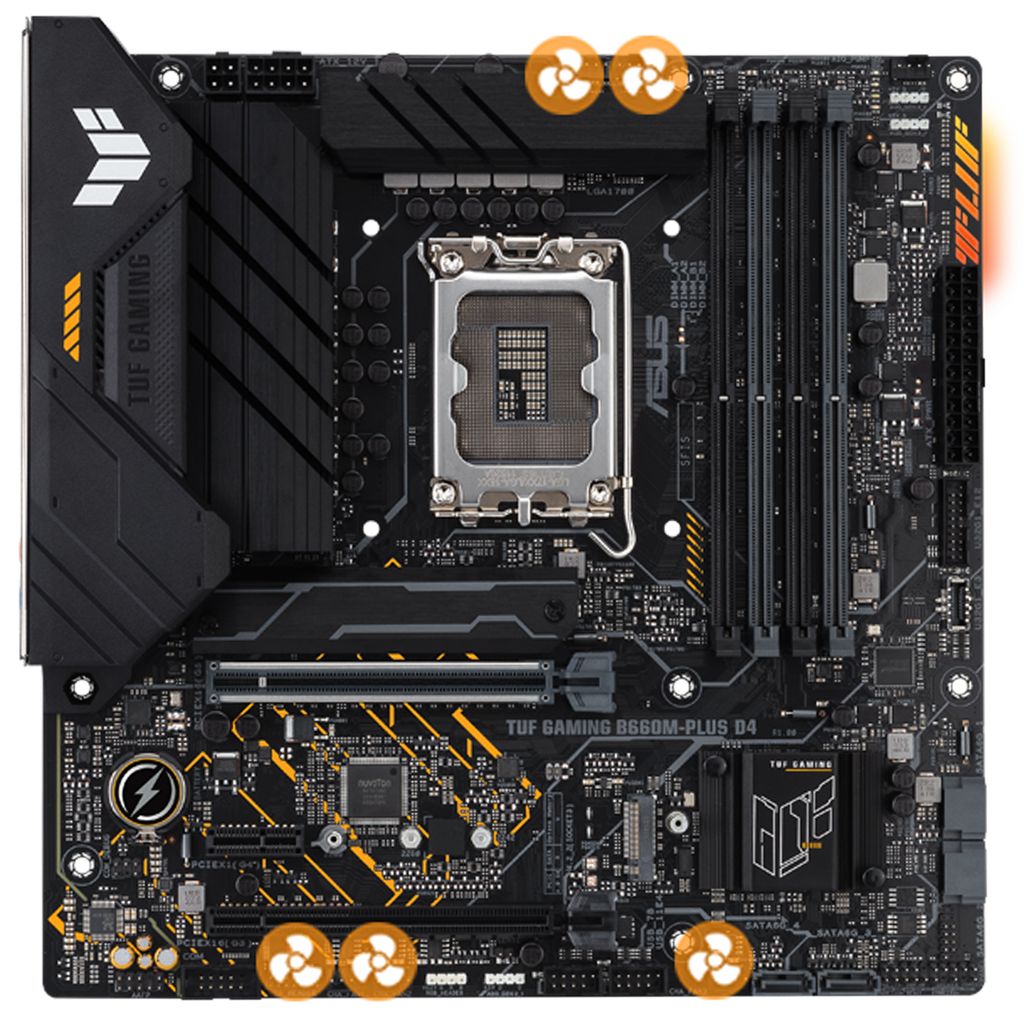

B660M-PLUS D4

Chipset

B660

RAM hỗ trợ

4 x DIMM, Max. 128GB, DDR4 5333(OC)/5066(OC)/5000(OC)/

4800(OC)/4600(OC)/4400(OC)/4266(OC)/4000(OC)/3866(OC)/

3733(OC)/3600(OC)/3466(OC)/3400(OC)/3333(OC)/3200/3000/

2933/2800/2666/2400/2133 Non-ECC, Un-buffered Memory

Khe cắm mở rộng

Intel^® 12^th Gen Processors

1 x PCIe 5.0 x16 slot

Intel^® B660 Chipset*

1 x PCIe 3.0 x16 slot (supports x4 mode)

1 x PCIe 4.0 x1 slot

Ổ cứng hỗ trợ

Intel^® 12^th Gen Processors

M.2_1 slot (Key M), type 2242/2260/2280

- Intel^® 12^th Gen processors support PCIe 4.0 x4 mode.

Intel^® B660 Chipset**

M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)

4 x SATA 6Gb/s ports

Cổng kết nối (Internal)

Storage related

2 x M.2 slots (Key M)

4 x SATA 6Gb/s ports

USB

1 x USB 3.2 Gen 1 connector (supports USB Type-C^®)

1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports

2 x USB 2.0 headers support additional 4 USB 2.0 ports

Miscellaneous

3 x Addressable Gen 2 headers

1 x AURA RGB header

1 x Clear CMOS header

1 x COM Port header

1 x Front Panel Audio header (AAFP)

1 x 20-3 pin System Panel header with Chassis intrude function

1 x Thunderbolt™ header

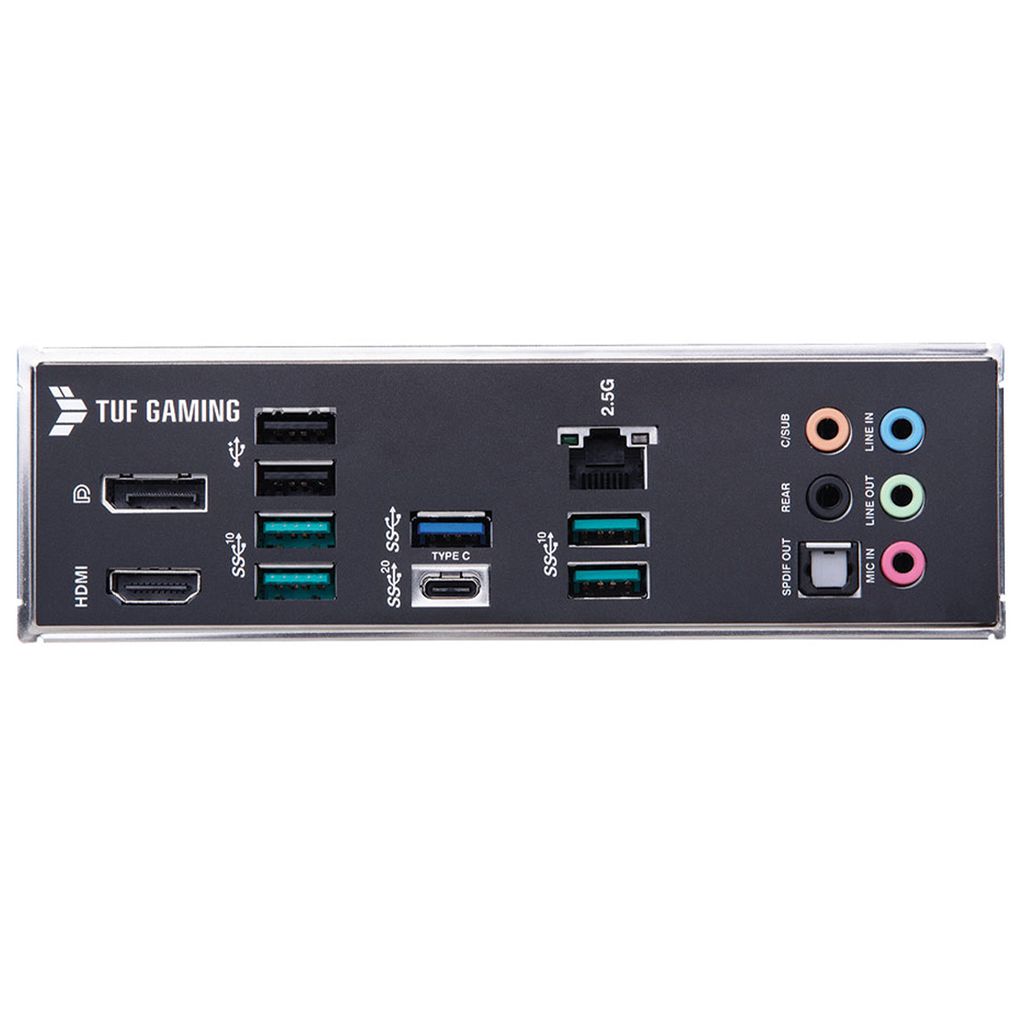

Cổng kết nối (Back Panel)

1 x USB 3.2 Gen 2x2 port (1 x USB Type-C®)

4 x USB 3.2 Gen 2 ports (4 x Type-A)

1 x USB 3.2 Gen 1 port (1 x Type-A)

2 x USB 2.0 ports (2 x Type-A)

1 x DisplayPort

1 x HDMI® port

1 x Wi-Fi Module

1 x Realtek 2.5Gb Ethernet port

5 x Audio jacks

1 x Optical S/PDIF out port

Kích cỡ

microATX
24.4cm x 24.4cm
